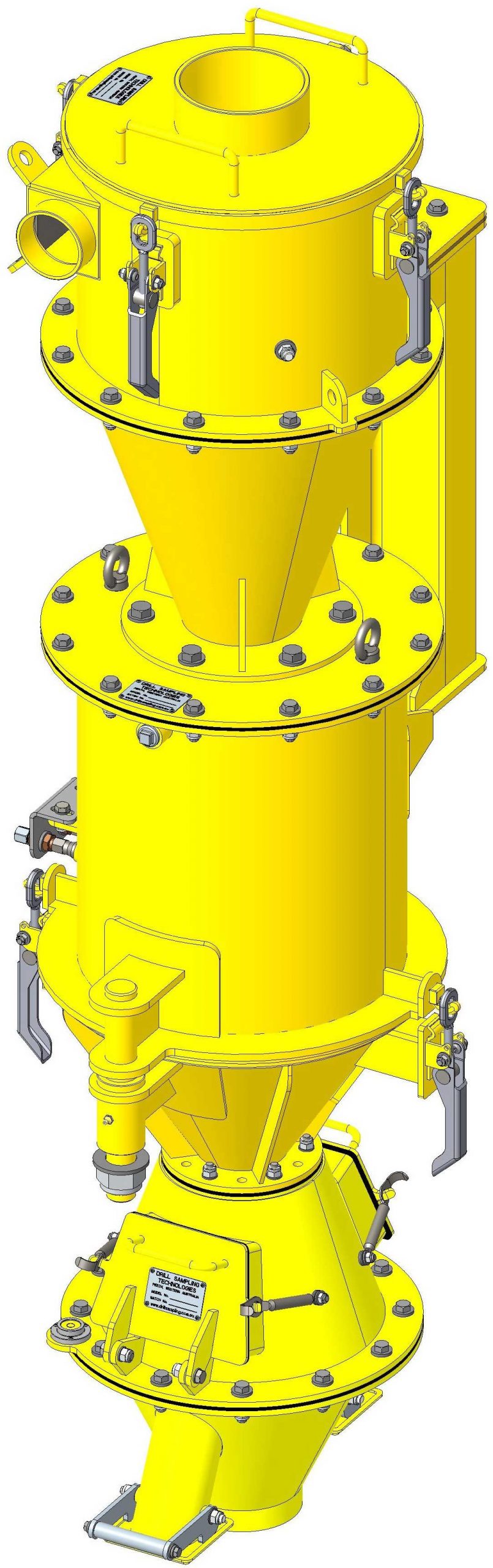

Underground Rotary / Cone Splitter RC Sampling System

Underground rotary RC sampling system for compressors up to 750 CFM / 400 PSI. Designed for constant sampling in wet drilling conditions.

Unique design specifically for underground RC sampling in wet conditions.
Suitable for air compressors up to 750 CFM / 400 PSI (350 LPS / 28 BAR).
Sampling system height / mass: 2.0m / 255kg.
Constant flow sampling via a hydraulically driven rotary chute.
Bolt-in quenched & tempered steel wear plates to cyclone barrel & inlet tract.
Durable Linatex® rubber lined cyclone cone & cyclone lid.
Adjustable split 2-port cone splitter (4%, 6%, 8% & 10% as standard, other sizes are available upon request). 3-port cone splitter option available.
Moving parts are contained & away from the working area.
Manually operated splitter swing-out for easy inspection & cleaning.
